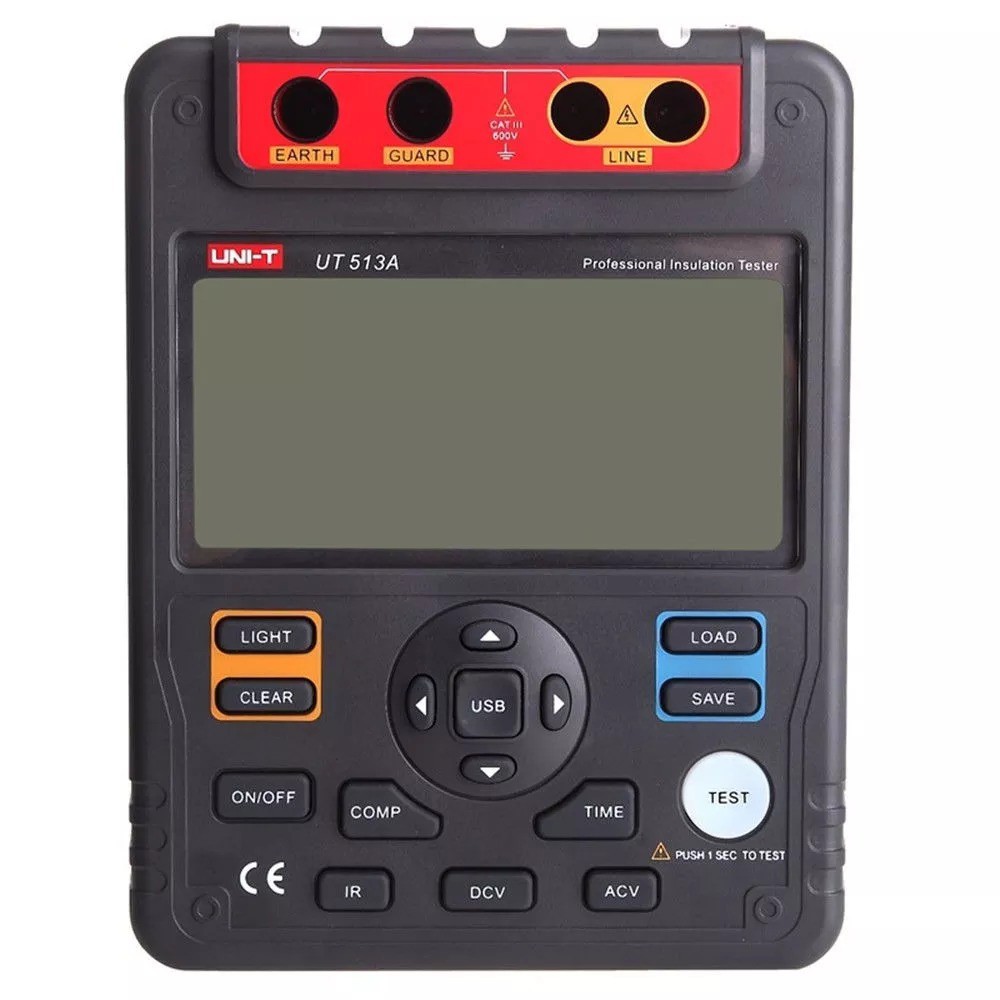

UT513A Insulation Resistance Tester
Safety Shoe Shopping Event
Get discounts on all safety shoe up to 20%
Safety_shoe_20
36,000.00৳
- Pick up from the Safestallbd Store
House - 11 (2ndfloor), Road - 16, Sector - 11, Uttara, Dhaka 1230
Free
- Steadfast Courier Delivery
Steadfast courier will deliver to the specified address
Inside Dhaka - (24hours) - 70 TK, Outside Dhaka -(48hours) - 130 TK
- Pathao Courier Delivery
Pathao courier will deliver your products to the specific address
Inside Dhaka - (24hours) - 70 TK, Outside Dhaka - (2-3 Days) - 130 TK
- Sundarban Courier Delivery
Sundarban courier will deliver to the specified address
Inside Dhaka - (24hours) - 80 TK, Outside Dhaka - (48hours) - 150 TK
- Warranty 1 year
- Free 7-Day Returns
Available Payment Methods:
Why use UT513A Insulation Resistance Tester ?
UT513A Insulation Resistance Tester is a high-performance insulation resistance tester designed for professionals in electrical maintenance, industrial equipment testing, and high-voltage environments. Capable of testing insulation resistance up to 10GΩ with selectable test voltages up to 1000V, it ensures reliable performance in high-demand applications.
🛠️ Key Features
-
Insulation Resistance Range: Up to 10GΩ
-
Test Voltages: Selectable at 100V, 250V, 500V, and 1000V
-
PI & DAR Testing: Automatically calculates values for insulation aging and quality
-
USB Interface: For data storage and PC analysis
-
Auto Ranging: Simplifies operation and improves efficiency
-
Data Hold / Storage: Save and recall up to 18 measurements
-
Backlit LCD Display: Large, easy-to-read screen for use in dim conditions
-
Overrange & Low Battery Indicators: Ensures safe and accurate operation
-
Auto Discharge Function: Enhances user safety after high-voltage testing
📊 Specifications Table
| Parameter | UT513A Details |
|---|---|
| Insulation Resistance | 0.01MΩ to 10GΩ |
| Test Voltage | 100V / 250V / 500V / 1000V |
| PI (Polarization Index) | Yes |
| DAR (Absorption Ratio) | Yes |
| Short Circuit Current | >1.8mA |
| AC Voltage Measurement | 30V~600V (±2%+3) |
| Auto Ranging | Yes |
| Display Count | 9999 |
| Data Hold | Yes |
| Data Storage | 18 sets |
| Auto Power Off | Yes |
| USB Interface | Yes (Software included) |
| Backlit Display | Yes |
| Power Supply | 1.5V AA x 8 batteries or AC adapter |
| Product Weight | ~1.8 kg |
| Product Size | 202mm x 155mm x 94mm |
| Safety Rating | CAT III 600V |
| Standard Accessories | Test leads, alligator clips, power cord, USB cable, CD, manual, carrying case |
