OS&Y GATE VALVE

Why use OS&Y GATE VALVE?

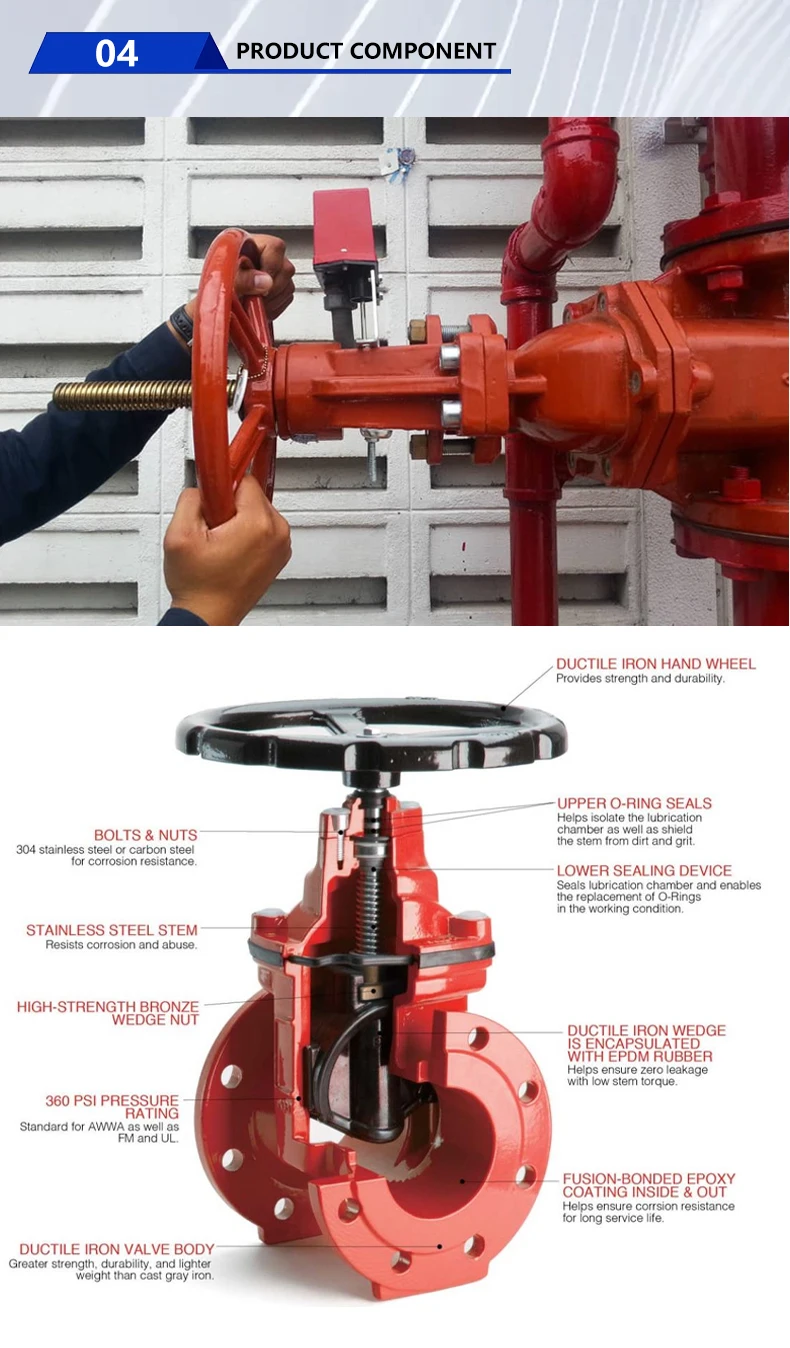

OS&Y gate valve is generally used to completely shut off fluid flow or, in the fully open position, provide full flow in a pipeline. Thus it is used either in the fully closed or fully open positions. A gate valve consists of a valve body, seat and disc, a spindle, gland, and a wheel for operating the valve.

Valve Standard          :  Conforms to AWWA C515, BS5163

Working Pressure     :  21 BARS/ 300PSI

Temperature : -10°c to 120°c

Fusion bonded epoxy coated interior and exterior RAL3002

Flanged Ends             :  ANSI B16.1 Class125/150,

EN1092-2 PN10/PN16

BS10 Table D/Table E

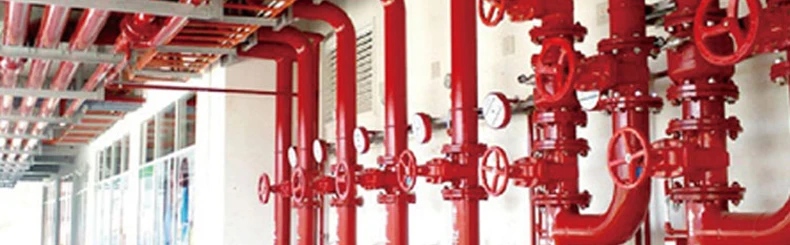

OS & Y gate valve commonly used to control water flow to fire sprinkler systems
OS&Y means “outside stem and yoke” or “outside screw and yoke”.
OS&Y gate valves operate by opening and closing via a gate, which lowers into or rises out of the valve. Raising the gate allows water to flow through the valve while lowering the gate cuts off the water flowing through the valve. When fully open, the typical gate valve has no obstruction in the flow path, resulting in very low friction loss. UL & FM certified.
