Description

Why Used to Fluke 9040 Phase Rotation Indicator ?

The Fluke 9040 Phase Rotation Indicator is a professional-grade instrument designed for electrical engineers, technicians, and maintenance personnel who need a reliable and easy-to-use tool for determining phase sequence and motor rotation in three-phase systems. Built with the rugged quality and precision Fluke is known for, the 9040 provides fast, accurate results in demanding industrial environments.

This device is specifically engineered to detect the presence and sequence of phase rotation in three-phase power systems, helping ensure motors and systems are wired correctly before energizing. It features a large, backlit LCD screen that clearly displays phase rotation direction and voltage presence, making it easy to read even in poorly lit environments.

Unlike traditional methods, the Fluke 9040 does not require a battery to operate, relying instead on the system under test for power—eliminating concerns about battery life during critical tasks. With its robust construction and CAT III 600 V safety rating, it’s well-suited for use in high-voltage applications found in commercial and industrial settings.

Key Features:

• Three-phase rotation detection: Quickly determines the correct phase sequence to ensure proper motor connection.

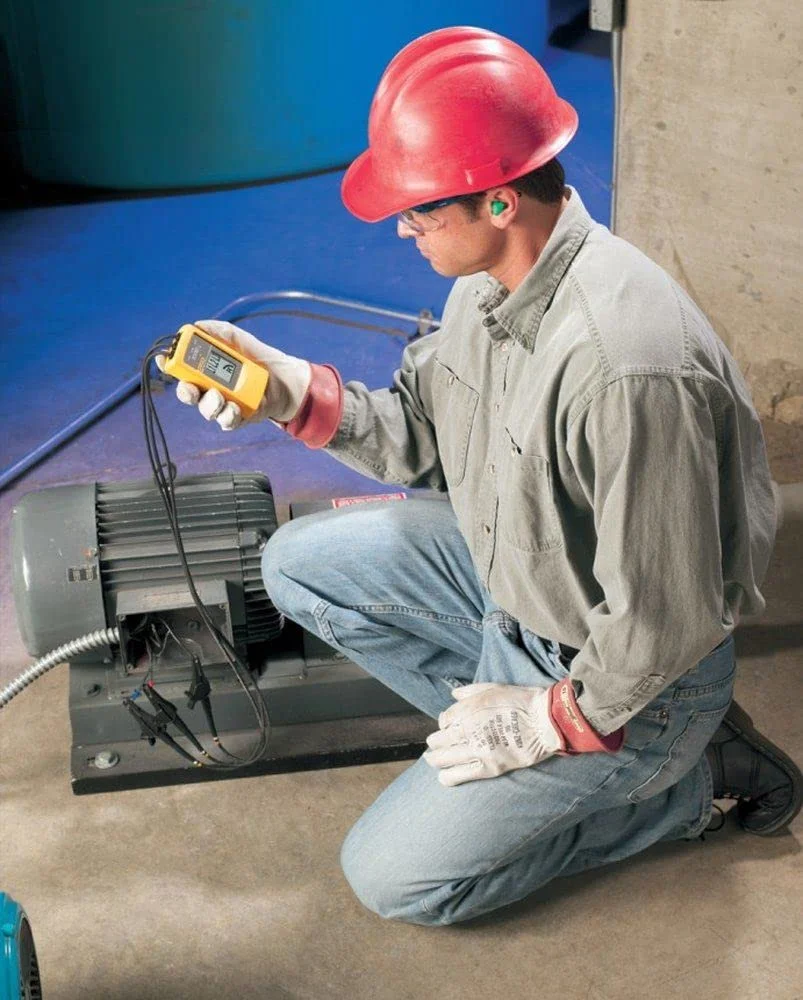

• Motor rotation indication: Identifies motor direction without physical connection to the motor shaft.

• Wide voltage range: Operates with voltages from 40 V to 700 V AC.

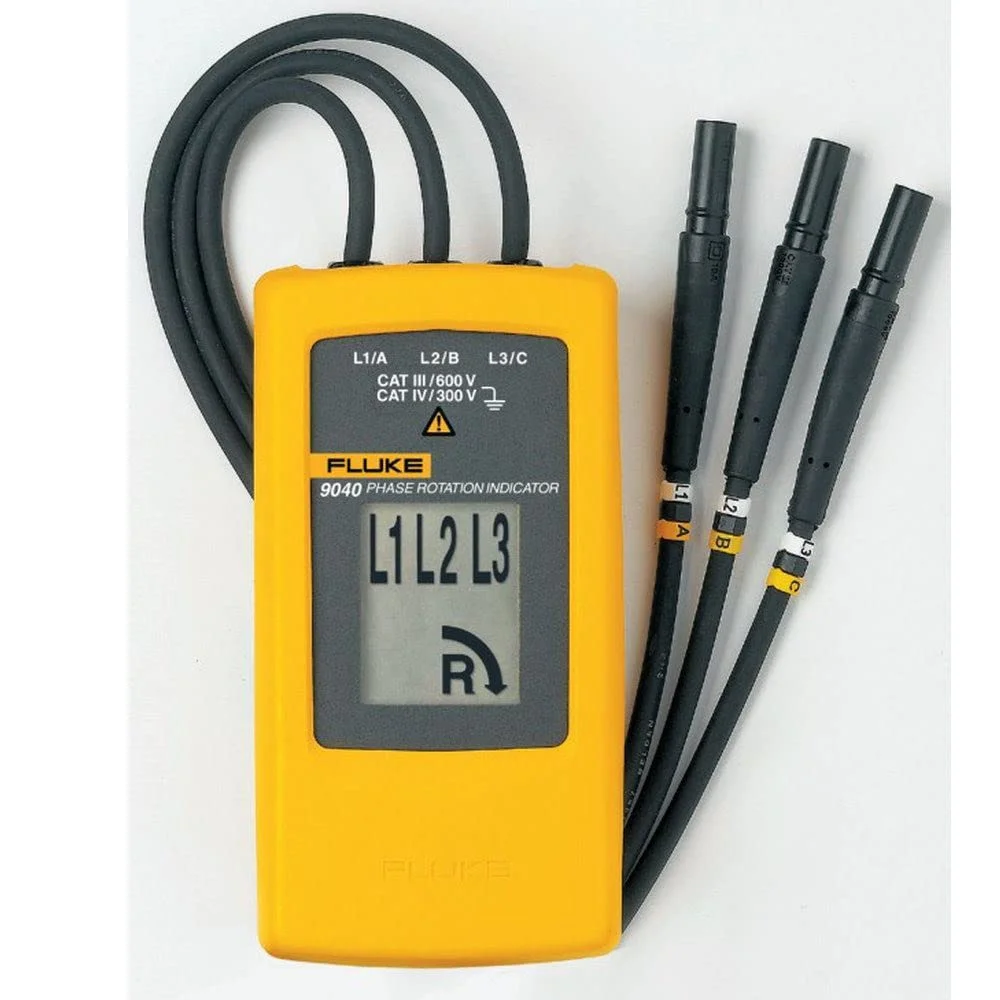

• Large, easy-to-read LCD display: Provides clear phase and rotation indicators.

• No battery required: Powered by the measured circuit for hassle-free operation.

• CAT III 600 V safety rating: Ensures safe operation in demanding environments.

• Durable and portable: Compact, lightweight design with included test probes and crocodile clips for secure connections.

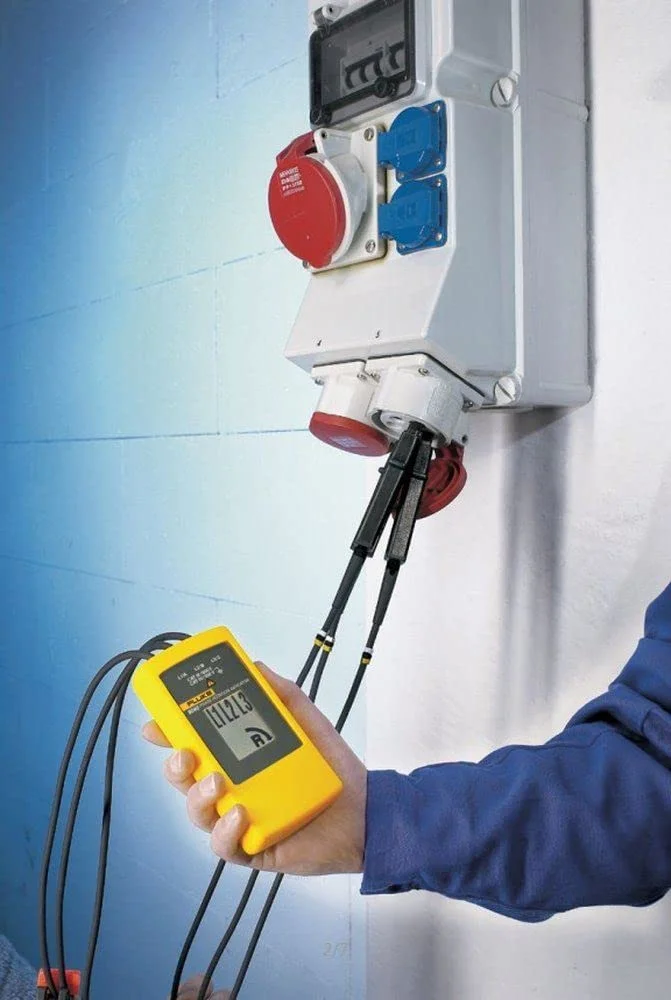

Applications:

• Electrical installation and commissioning

• Industrial maintenance and troubleshooting

• HVAC systems

• Motor control and automation

• Facility management

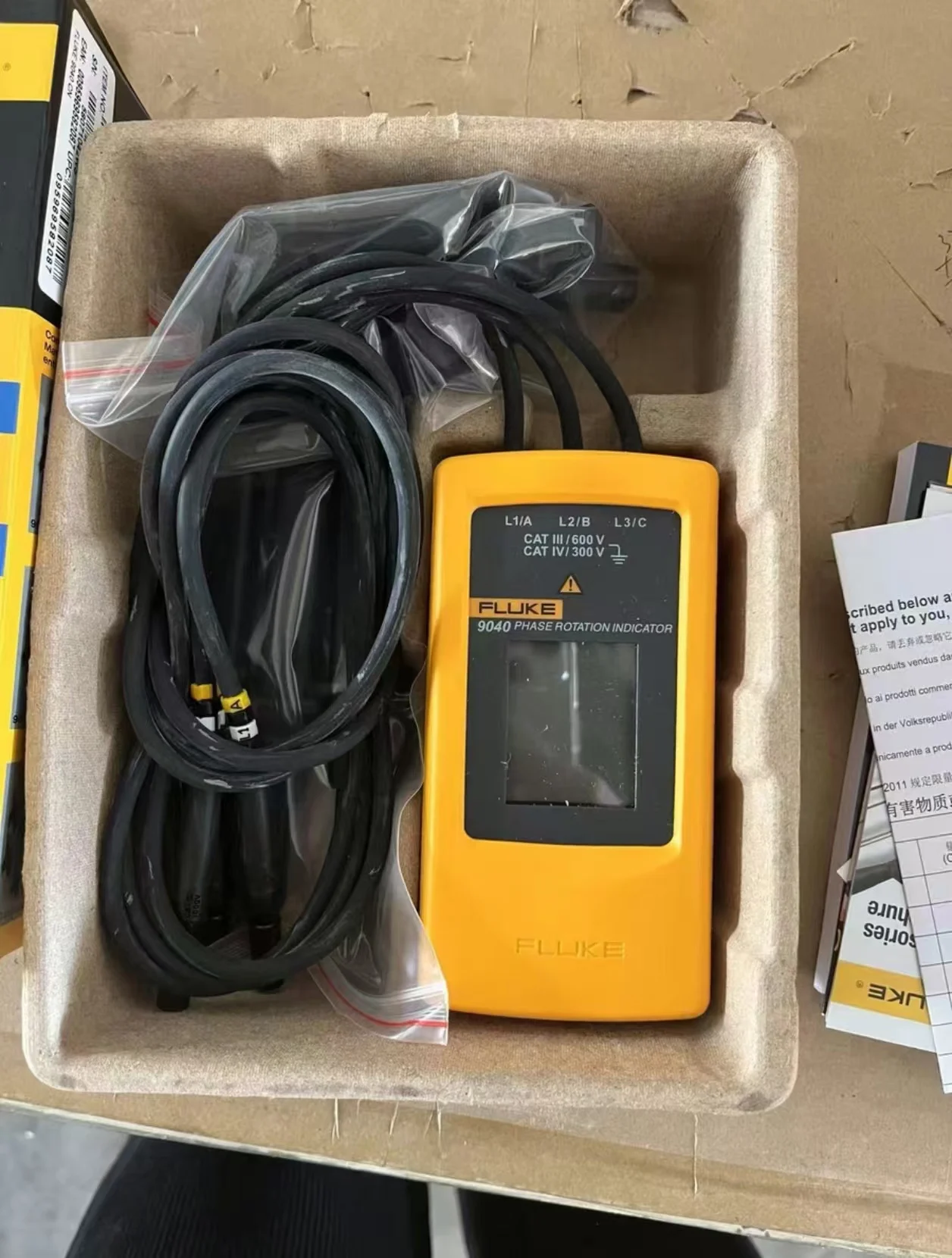

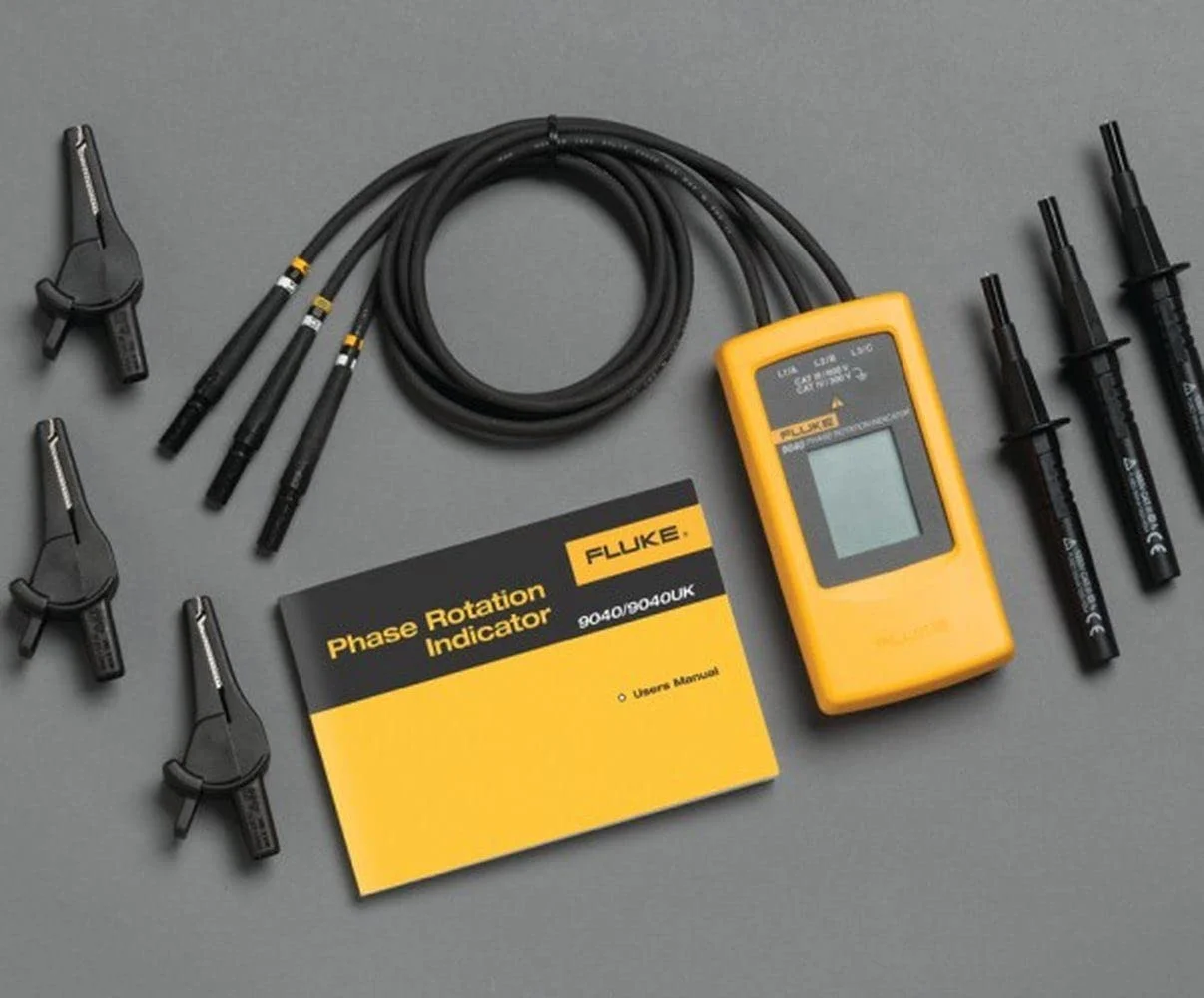

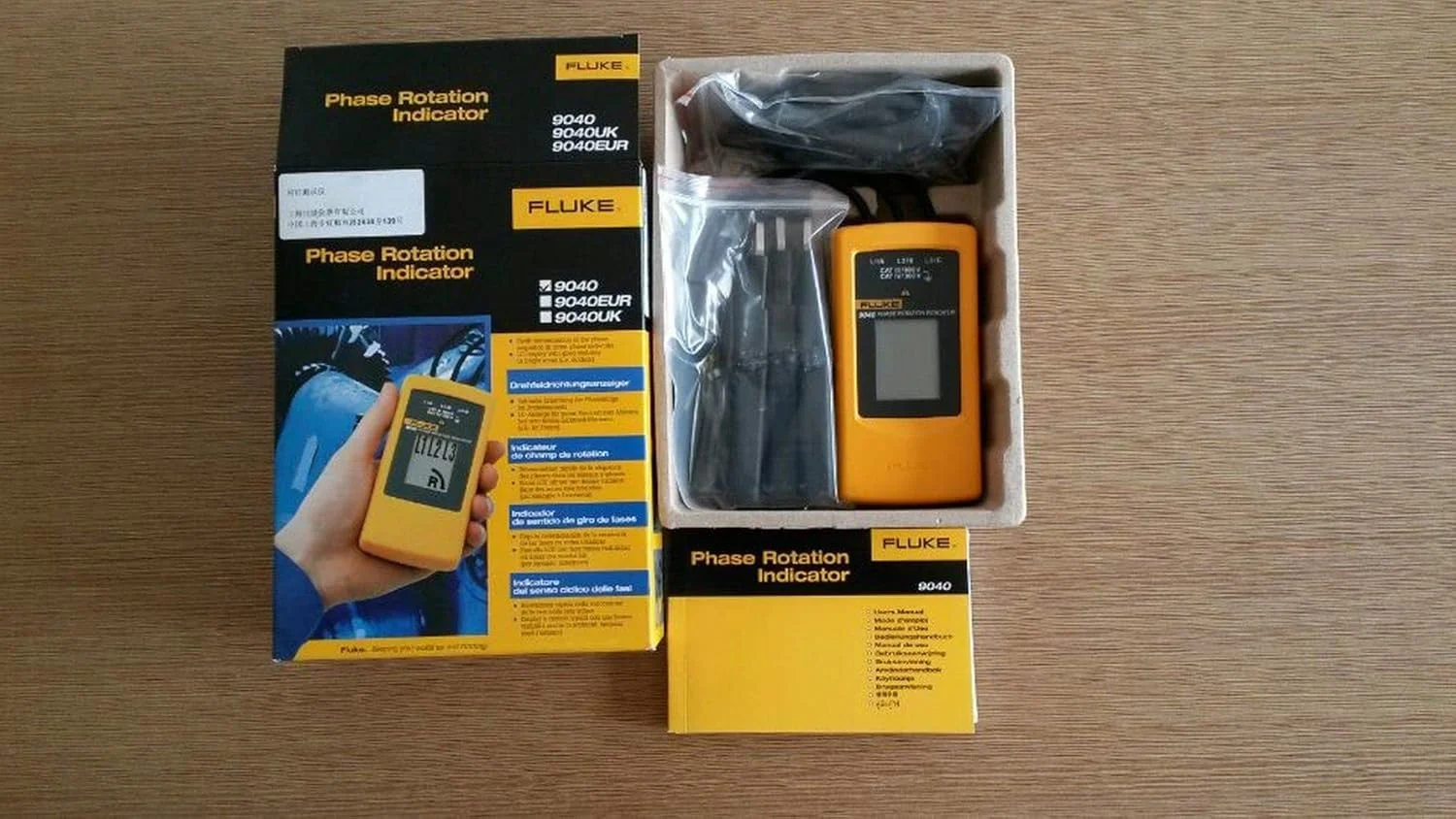

What’s in the Box:

• Fluke 9040 Phase Rotation Indicator

• 3 Test leads with alligator clips

• User manual

• Soft carrying case

Specifications:

• Voltage Range: 40 V to 700 V AC

• Frequency Range: 15 Hz to 400 Hz

• Operating Temperature: 0°C to 40°C

• Dimensions: 124 x 61 x 27 mm (4.9 x 2.4 x 1.1 in)

• Weight: 200 g (7 oz)

• Safety Rating: CAT III 600 V

The Fluke 9040 is a must-have for professionals who demand accuracy, reliability, and safety in their electrical testing tools. Ensure proper motor installation and system performance with confidence—choose Fluke.
